Precision CNC Machining Standard Aluminum Extrusion Profiles

Precision CNC Machining Standard Aluminum Extrusion Profiles
Precision CNC Machining Standard Aluminum Extrusion Profiles Precision CNC Machining Standard Aluminum Extrusion Profiles Precision CNC Machining Standard Aluminum Extrusion Profiles Precision CNC Machining Standard Aluminum Extrusion Profiles

Large Image :  Precision CNC Machining Standard Aluminum Extrusion Profiles

Product Details:

Place of Origin: Langfang,Hebei,China
Brand Name: Goomay
Certification: ISO9001:2015,ISO14001:2015,ISO45001:2008
Model Number: GM-TZ-33

Payment & Shipping Terms:

Minimum Order Quantity: MOQ 500KGS For Initial Order,the quantity could be negotiable
Price: Negotiable
Packaging Details: Inside: packed with plastic film to protect each piece. Outside: Wrap to be bundles by waterproof craft paper or EPE film. Customized as customers request is available.
Delivery Time: After drawings confirmed,4-7days moulds ready , after samples approved , 7-10days delivery for 200TONS
Payment Terms: 30%deposit+70% against BL copy, D/P, L/C
Supply Ability: 5000T MONTHLY
Detailed Product Description

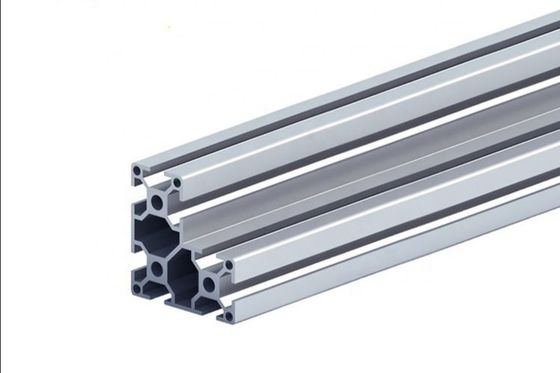

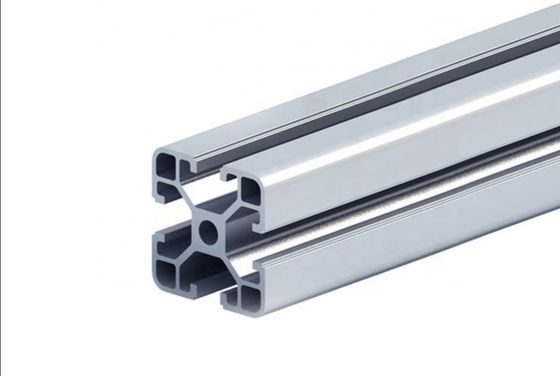

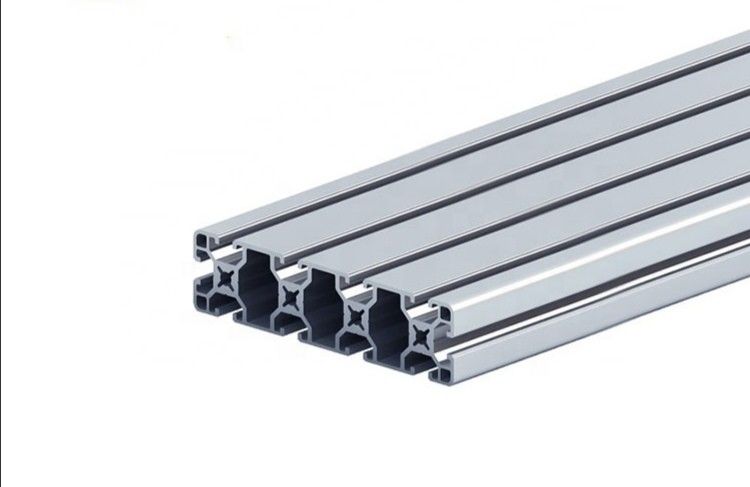

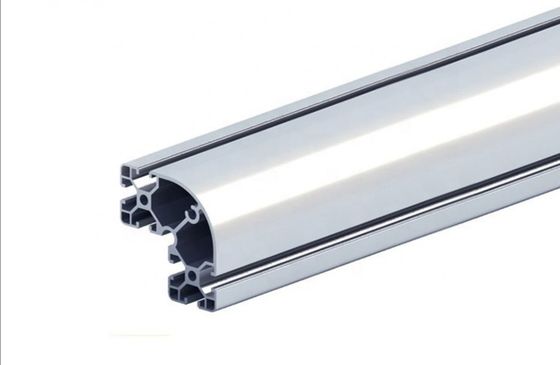

Product Name: 4040 4080 6060 Industrial Assembling Line Aluminum Profile Material: Aluminium Alloy 6063-T5,T6 6061-T5, T6
Surface Treatment: Mill Finish, Powder Coating, Anodizing, Wooden Grain Coating, Polishing, Electrophoresis, PVDF, Sanding Blasting, Etc Types: 40X40 60X60 80X80 100X100 40X80 Difference Sizes Available Or Customized
Apllication: Production Line , Machinery Etc Package: Protective Film+thermal Shrinkage Bag, Single Profile Covered By Non-woven Cloth+ Whole Craft Paper,customized Package
High Light:

Standard Aluminum Extrusion Profiles

,

CNC Aluminum Extrusion Profiles

,

Precision CNC Aluminum Extrusion Profiles

Industrial Aluminum Extrusion Profile Manufacturer Over 25 Years Experience



Product Description



Product Description
Item Aluminium profile
Meterial and temper 6063-T5,T6 6061-T5, T6 6463-T5,T6
Brand Name Goomay
Thickness General profiles thickness:0.8-5.0mm
Anodizing film thickness: over 13 μm;
Powder coating film thickness: 40-120 μm
Length  General length: 3m-6m
Shape Square,flat,round,hollow,oval,triangle,U-profiles,L-profiles,T-profiles,H-profiles,irregular,or customized available
Surface Treatment  Mill,anodized,powder coated,electrophoresis,wood grain,PVDF paint,crystal paint, sand blasting,polishing,burnished, matt, brushed
color  Silver,black,champagne,gold,black,white,bronze,irongrey,platium,green,etc.or customized
Deep Process  CNC:drilling,milling,tapping,cutting,welding,bending,assembling
MOQ  500kgs for each item
Production Capacity  Approx.3000 tons monthly,approx.50,000 tons annually
Certificate  ISO 9001:2008;CQM,SGS,CE,BV,SONCAP/GB,ISO,JIS,AS,NZS,QUALICOAT
Guarantee period  Surface color can be stable for 10~20 years indoor using
Standard Packing  **Inside:packed with plastic film to protect each piece
 **Outside:Wrap to be bundles by waterproof craft paper or EPE film
 **Customized request available
Lead time  **Mould developing &Sample testing: 12-15 days after receiving the full of moulds cost
 **Mass Production:20-25days after sample confirmed & down payment
FOB Port  Shenzhen, Guangzhou, Foshan
Payment Terms  T/T 30% for deposit,balance before delivery
Mould fees  Use our existing mould--free of charge
 New mould--mould fee will be refunded if order quantity with this mould reaches certain amount
Settlement Terms  Charge by final actual weight or drawing theoretical weight









































































































Aluminium Alloy Chemical Composition
Alloy 6063 (%) 6063A (%) 6061 (%) 6082 (%)
Si 0.2~0.60 0.3~0.60 0.4~0.80 0.7~1.30
Fe 0.35 0.15~0.35 0.7 0.5
Cu 0.1 0.1 0.15~0.40 0.1
Mn 0.1 0.15 0.15 0.40~1.0
Mg 0.45~0.90 0.60~0.90 0.80~1.20 0.6~1.20
Cr 0.1 0.05 0.04~0.35 0.25
Zn 0.1 0.15 0.25 0.2
Ti 0.1 0.1 0.15 0.1
Other (each) 0.05 0.05 0.05 0.5
Other (total) 0.15 0.15 0.15 0.15
Al Remainder Remainder Remainder Remainder



























We are your best choice:




1. Custom R&D program coordination


2. Quality,reliability and long product life



3. Competitive prices



4. Continuous service and support



5. A diversity of experienced and skilled workers



6. Apply professional knowledge






Our advantage

1. Advantageous location: At the hinterland of Beijing, Tianjin and Xiong’an New District, we enjoys an advantageous location and convenient transportation



2. More experience: founded in 1999, covering an area of 100,000 square meters, with total assets of 680 million yuan, it is the largest aluminum extrusion, casting and deep processing enterprise in North China.



3. Professional services: our products are sold to The Beijing-Tianjin-Hebei region and other provinces of China, and to 58 countries and regions in Europe, Africa, the Middle East and Southeast Asia. Our professional marketing team can provide you with better services. Pre-sale, sale and after-sales service

4. Sophisticated productin equipment: 15 most advanced extrusion presses from 500 to 5000 tons,2 powder coating lines, 5 wood transfer lines,2 anodizing lines,one fluorocarbon coating line and 10 aluminum casting machines.

5. Full product lines: Specialized in the production of industrial aluminum profile, architectural aluminum profile, Industrial assembly line aluminium profile, building templates aluminum profile, tent aluminum profile and radiator aluminum profile, with an annual capacity of 50,000 tons.

6. Strong technical forces: The company has more than 100 cutting-edge talents. It uses advanced ERP management system and advanced physical and chemical testing equipment to ensure quality, and has passed the ISO9001 international quality management system certification.
