6063 T5 T6 Powder Coated Standard Aluminium Extrusion Profiles

I feel satisfaction with their service . especially they always reply me fastly. no matter what time.maybe if they sleep, they can not reply me

—— James William

I Received Standard Aluminium Extrusion Profiles Products And It Looks Good. I Plan To Do More Business With You

—— Dwight(USA)

I'm Online Chat Now

6063 T5 T6 Powder Coated Standard Aluminium Extrusion Profiles

6063 T5 T6 Powder Coated Standard Aluminium Extrusion Profiles
6063 T5 T6 Powder Coated Standard Aluminium Extrusion Profiles 6063 T5 T6 Powder Coated Standard Aluminium Extrusion Profiles 6063 T5 T6 Powder Coated Standard Aluminium Extrusion Profiles

Large Image :  6063 T5 T6 Powder Coated Standard Aluminium Extrusion Profiles

Product Details:

Place of Origin: Hebei,China
Brand Name: Guomei Aluminium
Certification: ISO9001, ISO14001,ISO45001
Model Number: GM-GY001

Payment & Shipping Terms:

Minimum Order Quantity: 500KGS UP for initial order quantity negotiable OK
Price: negotiable
Packaging Details: Protective Film+Shrinkage Bags, Whole Craft Paper
Delivery Time: 1-7 days, according to the weight you need
Payment Terms: 30%deposit+70% against BL copy, D/P, L/C
Supply Ability: 3000TONS PER MONTH
Detailed Product Description
Shape: Round Bar Material: 6063-T5 T6 , 6061-T5 T6
Surface Treatment: Anodized, Mill Finish, Powder Coated Application: Building, Industry,Machinery,
Wall Thickness: 0.70mm Up Length: Normally 6 Metres, Customized Length Available
High Light:

6063 T5 Standard Aluminium Extrusions

,

Anodized aluminium alloy round bar

,

0.7mm Standard Aluminium Extrusions

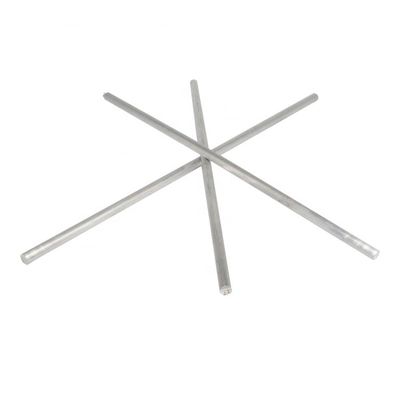

 Aluminium Alloy Round Bar With High Quality At Competive Price With Mill Finish,Anodized



Langfang Guomei Aluminum Co., Ltd. 6063 T5 T6 Powder Coated Standard Aluminium Extrusion Profiles 0
Aluminium Alloy Round Bar
Product Code Specifications Weight  (kg/m) Perimetre (mm) Are (mm²) D (mm)
GM-D6.3 D6.3 0.089 19.79 31.17 6.3
GM-D6.8 D6.8 0.104 21.36 36.32 6.8
GM-D7 D7 0.110 21.99 38.48 7
GM-D8 D8 0.143 25.13 50.27 8
GM-NEWZ-D9.53YB D9.53 0.203 30.00 71.40 9.53
GM-D10 GM-D10 0.224 31.42 78.54 10
GM-GY-17 GM-D10.5 0.247 32.99 86.59 10.5
GM-D11.8 D11.8 0.312 37.10 109.36 11.8
GM-NEWZ-D12.7YB D12.7 0.361 40.00 126.70 12.7
GM-JL-18 D13 0.378 40.84 132.73 13
GM-D16 D16 0.573 50.27 201.06 16
GM-NEWZ-D20YB D20 0.895 62.80 314.20 20
GM-D22 D22 1.083 69.12 380.13 22
GM-D25 D25 1.399 78.54 490.87 25


Langfang Guomei Aluminum Co., Ltd. 6063 T5 T6 Powder Coated Standard Aluminium Extrusion Profiles 1
Aluminium Alloy Round Bar
Product Code Specifications Weight (kg/m) Perimetre (mm) Are (mm²) D (mm)
GM-NEWZ-D25.4YB D25.4 1.444 79.80 506.70 25.4
GM-KXZ-65 D26.5 1.572 83.25 551.55 26.5
GM-NEWZ-D27YB D27 1.632 84.800 572.60 27
GM-696 GM-D32 2.292 100.53 804.25 32
GM-NEWZ-D38.1YB D38.1 3.249 119.70 1140.10 38.1
GM-NEWZ-D41.28YB D41.28 3.814 129.70 1338.40 41.28
GM-XT-04改 D42 3.949 131.95 1385.44 42
GM-NEWZ-D44.45YB D44.45 4.423 139.70 1551.80 44.45
GM-XT-05 D50 5.596 157.08 1963.50 50
GM-NEWZ-D50.8YB D50.8 5.777 159.60 2026.90 50.8
GM-NEWZ-D54YB D54 6.527 169.70 2290.20 54
GM-NEWZ-D60.32YB D60.32 8.144 189.50 2857.70 60.32



6063 T5 T6 Powder Coated Standard Aluminium Extrusion Profiles 2



Our advantage



1. Full product lines: Specialized in the production of industrial aluminum profile, architectural aluminum profile, Industrial assembly line aluminium profile, building templates aluminum profile, tent aluminum profile and radiator aluminum profile, with an annual capacity of 50,000 tons.

2. Strong technical forces: The company has more than 100 cutting-edge talents. It uses advanced ERP management system and advanced physical and chemical testing equipment to ensure quality, and has passed the ISO9001 international quality management system certification.

3. Advantageous location: At the hinterland of Beijing, Tianjin and Xiong’an New District, we enjoys an advantageous location and convenient transportation

4. More experienced: Founded in 1999, covering 100,000 square meters, and with a total asset of 680 million yuan, we are the largest aluminium extrusion, casting and deep processing enterprise in North China.

5. Sophisticated productin equipment: 15 most advanced extrusion presses from 500 to 5000 tons,2 powder coating lines, 5 wood transfer lines,2 anodizing lines,one fluorocarbon coating line and 10 aluminum casting machines.

6. Professional service: The products are sold to Beijing-Tianjin-Hebei regions and other provinces of China, and exported to 58 countries and regions in Europe, Africa, the Middle East and South East Asia.Our professional marketing team could supply you better pre-sales,mid-sales and after-sales services
