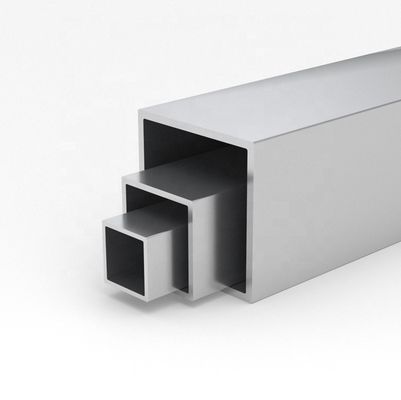

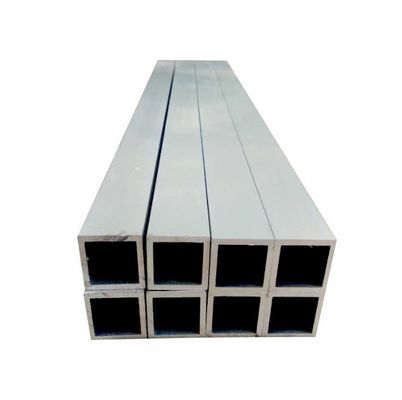

6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section

6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section

Product Details:

Place of Origin: Hebei,China
Brand Name: Guomei Aluminium
Certification: ISO9001, ISO14001,ISO45001
Model Number: GM-GY001

Payment & Shipping Terms:

Minimum Order Quantity: 500KGS UP for initial order quantity negotiable OK
Price: negotiable
Packaging Details: Protective Film+Shrinkage Bags, Whole Craft Paper
Delivery Time: 1-7 days, according to the weight you need
Payment Terms: 30%deposit+70% against BL copy, D/P, L/C
Supply Ability: 3000TONS PER MONTH
Get Best Price Contact Now

Detail Information
Shape: Rectangular Material: 6063-T5 T6 , 6061-T5 T6
Surface Treatment: Anodized, Mill Finish, Powder Coated Application: Building, Industry,Machinery,
Wall Thickness: 0.70mm Up Length: Normally 6metres, Customized Length Available
High Light:

T5 T6 Aluminium Rectangular Tube

,

6063 Aluminium Rectangular Tube

,

Anodized Aluminium Hollow Section

Product Description

6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section

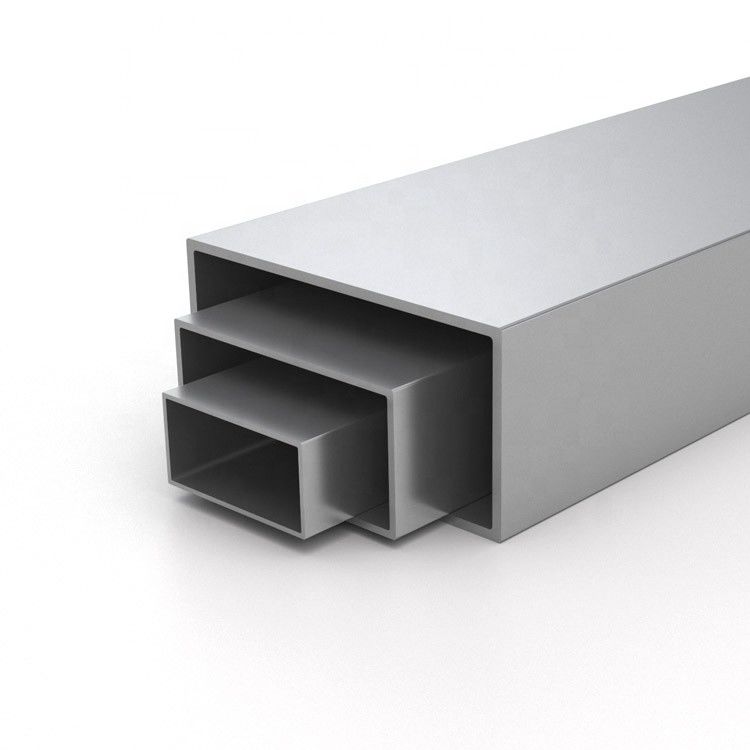

Aluminum Alloy Rectangle Square Tube Profiles With Mill Finish, Anodized And Powder Coated







Langfang Guomei Aluminum Co., Ltd. 6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 0      6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 1
Aluminum Alloy Rectangle Square Tube Profiles
Product Code Sizes Weight  (kg/m) Perimetre   (mm) Area   (mm²) W   (mm) H  (mm) T  (mm) R  (mm)
GM-15X12X1.2 15X12X1.2 0.168 54 59.04 15 12 1.2 　
GM-RS-37 17.8X13.8X1.4R 0.226 59.8 79.14 17.8 13.8 1.4 2
GM-LZF-74 18X14X2.0R 0.314 61.43 110.1 18 14 2 1.5
GM-671 18.5X13X1.0 0.165 60.86 57.87 18.5 13 1 1.3
GM-SX-034 20X10X1.2 0.189 59.5 66.24 20 10 1.2 　
GM-20X12X1.2 20X12X1.2 0.202 64 71 20 12 1.2 　
GM-20X15X2 20X15X2.0 0.353 70 124 20 15 2 　
GM-672 21X12.5X1.0 0.180 66.5 63 21 12.5 1 　
GM-22X10X2 22X10X2 0.319 64 112 22 10 2 　
GM-RS-36 23x17x1.2 0.243 74.9 85.3 23 17 1.2 3
GM-JL-43 25*9*1.2R 0.208 64.6 73 25 9 1.2 2
GM-TZ-14 25X15X1.0 0.217 79.5 76 25 15 1 　
GM-JL-19 25X15X2.5R 0.496 76.6 174.2 25 15 2.5 2
GM-25x20x1.0 25x20x1.0 0.245 89.5 86 25 20 1 　
VT-EF-1050 25.4X12.7X0.9 0.186 75.69 65.34 25.4 12.7 0.9 　
GM-DLX-04 28X15X1.0 0.234 85.5 82 28 15 1 　
GM-JD-28 30x10x1.5R 0.311 77.4 109.2 30 10 1.5 1.5
GM-HZ-30X10X2.0 30X10X2.0 0.405 79 142 30 10 2 　
GM-DLX-05 30X15X1.2 0.291 89.5 102.2 30 15 1.2 　
GM-YB-01 30x15x2R 0.453 85.7 158.9 30 15 2 2.5
GM-JD-13 30X15X2.2R 0.500 86.6 175.4 30 15 2.2 2
GM-DLX-08 30X18X1.0 0.262 95.5 92 30 18 1 　


Langfang Guomei Aluminum Co., Ltd. 6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 2        6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 3
Aluminum Alloy Rectangle Square Tube Profiles
Product Code Sizes Weight (kg/m) Perimetre (mm) Area (mm²) W (mm) H (mm) T (mm) R (mm)
GM-JL-17 30X18X1.5R 0.375 92.56 131.58 30 18 1.5 2
GM-JLFH-08 30X20X0.8 0.221 100 77.5 30 20 0.8 　
GM-GFX-002 30X20X1.0-R1.5 0.269 97.4 94.3 30 20 1 1.5
GM-30x20x1.2 30x20x1.2 0.325 99.5 114.2 30 20 1.2 　
GM-JD-29 30X20X1.6R 0.422 97.4 147.9 30 20 1.6 1.5
GM-BK-02 30X20X1.8 0.476 100 167 30 20 1.8 　
GM-JL-81 32x27x1.8 0.566 116.28 198.66 32 27 1.8 1
GM-NEWZ-34.5X12X1.2R 34.5X12X1.2 0.300 91.5 105.2 34.5 12 1.2 1
GM-TZ-05 34.8X24.8X0.65 0.211 116 73.92 34.8 24.8 0.65 2
GM-XF-003 35X20X0.5 0.154 109.5 54 35 20 0.5 　
GM-GFX-75 35x25x1.5-R3 0.471 114.85 165.2 35 25 1.5 3
GM-XF-23x36 36*23*0.5 0.165 117.5 58 36 23 0.5 　
GM-37.2X24.2X1.1 37.2X24.2X1.1 0.371 122.3 130.24 37.2 24.2 1.1 　
GM-SX-022 38X7X1.2 0.289 88.3 101.5 38 7 1.2 1
GM-XF-001 38X25X0.5 0.177 125.5 62 38 25 0.5 　
GM-MD-007 38X25X0.6 0.211 126 74.16 38 25 0.6 　
GM-TZ-74 38X25X0.9 0.314 125.5 110.2 38 25 0.9 　
GM-38X25X1.0 38X25X1.0 0.348 126 122 38 25 1 　
GM-38X25X1.2 38X25X1.2 0.415 126 145.44 38 25 1.2 　
GM-NEWZ-38X25X1.5R 38X25X1.5R 0.496 120.85 174.21 38 25 1.5 3
GM-NEWZ-38X25X2.0 38X25X2.0 0.672 125.14 235.86 38 25 2 　
GM-NEWZ-38X25X2.5R 38X25X2.5R 0.805 120.85 282.49 38 25 2.5 3


Langfang Guomei Aluminum Co., Ltd. 6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 2         6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 3
Aluminum Alloy Rectangle Square Tube Profiles
Product Code Sizes Weight (kg/m) Perimetre (mm) Area (mm²) W (mm) H (mm) T (mm) R (mm)
GM-25X38X3.0 38X25X3.0 0.975 126 342 38 25 3 　
GM-VT-EF1150 38X25.4X0.9 0.317 126.5 111.1 38 25.4 0.9 　
GM-20x40X0.75 40X20x0.75 0.250 120 87.75 40 20 0.75 　
GM-SX-WM2911 40X20X0.9 0.298 119.485 104.68 40 20 0.9 　
GM-DLX-07 40X20X1.2 0.394 119.5 138.2 40 20 1.2 　
GM-JL-07 40X20X1.6R 0.509 116.6 178.54 40 20 1.6 2
GM-JL-20 40X20X2.0R 0.629 116.57 220.64 40 20 2 2
GM-NEWZ-40X20X3 40X20X3 0.923 120 324 40 20 3 　
GM-40X25X2 40X25X2 0.695 130 244 40 25 2 　
GM-PF-41 40X25X2.5R 0.834 124.85 292.49 40 25 2.5 3
GM-30x40x0.7 40x30x0.7 0.274 139.49 96.04 40 30 0.7 　
GM-JLFH-07 40.6X23.6X0.8 0.286 128.4 100.2 40.6 23.6 0.8 　
GM-DYR-10 45X20X1.5 0.530 129.66 186 45 20 1.5 　
GM-MD-004 45X25X0.6 0.235 140 82.56 45 25 0.6 　
GM-40X45X3.0 45x40x3.0 1.351 170 474 45 40 3 　
GM-5020 50x20x0.8 0.305 135 107 50 20 0.8 3
GM-MD-002 50X25X0.6 0.252 149.5 88.56 50 25 0.6 　
GM-LGY-45 50X25X0.8 0.314 149.49 110.17 50 25 0.8 　
GM-50x25x1.2 50x25x1.2 0.496 150 174.2 50 25 1.2 　
GM-NEWZ-50X25X1.6 50X25X1.6 0.654 149 229.6 50 25 1.6 　
GM-50X25X2.5 50X25X2.5 0.998 150 350 50 25 2.5 　
GM-50X25X3.0 50X25X3.0 1.180 150 414 50 25 3 　


Langfang Guomei Aluminum Co., Ltd. 6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 2       6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 3
Aluminum Alloy Rectangle Square Tube Profiles
Product Code Sizes Weight (kg/m) Perimetre (mm) Area (mm²) W (mm) H (mm) T (mm) R (mm)
GM-NEWZ-50X25X3R 50X25X3R 1.158 144.85 406.27 50 25 3 3
GM-50X30X1.2 50X30X1.2 0.531 160 186.2 50 30 1.2 　
GM-BJ50x30 50x30x2.0 0.866 160 304 50 30 2 　
GM-PF-24 50X34X2R 0.888 162 311,4 50 34 2 3.5
GM-NEWZ-34.5X12X1.2R 34.5X12X1.2 0.300 91.5 105.2 34.5 12 1.2 1
GM-50X35X3.0 50X35X3.0 1.351 170 474 50 35 3 　
GM-GY-28 50X38.5X2 0.963 176.14 338 50 38.5 2 　
GM-NEWZ-50X40X2 50X40X2 0.980 180 344 50 40 2 　
GM-NEWZ-50X40X2R 50X40X2R 0.961 174.85 337.13 50 40 2 3
GM-VT-EF1200 50.2X25.4X0.9 0.378 150.7 132.8 50.2 25.4 0.9 　
EF-1520 50.8*38.1*0.9 0.447 177.3 156.8 50.8 38.1 0.9 　
GM-LDFR-75 51X39X1.8R 0.881 177.43 309.11 51 39 1.8 1.5
GM-54.7X11X0.7 54.7X11X0.7 0.257 131.4 90 54.7 11 0.7 　
GM-55X9X1.3 55X9X1.3 0.455 127.5 159.56 55 9 1.3 　
GM-F55x22x0.7 55x22x0.7 0.302 153.49 105.84 55 22 0.7 　
GM-SK-10 55X30X1.0 0.473 170 166 55 30 1 　
GM-G46 55.5X11.2X0.8 0.297 130.82 104.16 55.5 11.2 0.8 1.5
GM-DLX-10 60X20X1.2 0.531 159.5 186.2 60 20 1.2 　
GM-TL005333 60X25X1.3 0.596 164.85 209 60 25 1.3 3
GM-TL005073 60X25X1.5 0.701 164.9 246 60 25 1.5 3
GM-WZW-02 60x26x2 0.896 163.42 314.27 60 26 2 5
GM-NEWZ-60X40X2 60X40X2 1.094 200 384 60 40 2 　


Langfang Guomei Aluminum Co., Ltd. 6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 2        6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 3
Aluminum Alloy Rectangle Square Tube Profiles
Product Code Sizes Weight (kg/m) Perimetre (mm) Area (mm²) W (mm) H (mm) T (mm) R (mm)
GM-NEWZ-60X40X2R 60X40X2 1.075 195 377.13 60 40 2 3
GM-40x60X2.5 60X40x2.5 1.354 199.5 475 60 40 2.5 　
GM-NEWZ-60X40X3.0 60X40X3.0 1.607 199.2 563.9 60 40 3 　
GM-60X40X3.8 60X40X3.8 2.001 200 702.24 60 40 3.8 　
GM-60X40X4.0 60X40X4 2.098 200 736 60 40 4 　
GM-LZY-106 60x40x5R 2.555 196.57 896.57 60 40 5 2
GM-NEWZ-61(shape) 65X16X1.2 0.568 161.5 199.3 65 16 1.2 2
GM-887 69.9x19.9x0.9 0.451 179 158.31 69.9 19.9 0.9 　
GM-ZZQ-07 70X30.2X1.0 0.450 199.89 157.76 70 30.2 1 　
GM-ZZQ-08 71.6X21.3X1.0 0.518 185.29 181.8 71.6 21.3 1 　
GM-NEWZ-75X25X2.2 75X25X2.2 1.199 199.2 420.7 75 25 2.2 　
GM-MD-003 75X45X0.8 0.507 239.5 177.8 75 45 0.8 　
GM-NEWZ-75X40X2 75X40X2 1.265 230 444 75 40 2 　
GM-7625X1.2 76X25X1.2 0.674 201.5 236.6 76 25 1.2 　
GM-7625X1.5 76X25X1.5 0.838 201.5 294 76 25 1.5 　
GM-7644X0.7 76X44X0.7 0.473 240 166 76 44 0.7 　
GM-76X44X1.0 76X44X1.0 0.673 240 236 76 44 1 　
GM-76X44X1.2 76X44X1.2 0.804 240 282.2 76 44 1.2 　
GM-76X44X1.4 76X44X1.4 0.935 240 328 76 44 1.4 　
GM-76X44X1.5 76X44X1.5 1.000 240 351 76 44 1.5 　
GM-76X44X2.0 76X44X2.0 1.322 240 464 76 44 2 　
GM-VT-EF-1300 76X25.4X0.9 0.512 202.7 179.6 76.2 25.4 0.9 　


Langfang Guomei Aluminum Co., Ltd. 6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 2        6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 3
Aluminum Alloy Rectangle Square Tube Profiles
Product Code Sizes Weight (kg/m) Perimetre (mm) Area (mm²) W (mm) H (mm) T (mm) R (mm)
GM-VT-EF-300 76X44.5X0.9 0.610 240.8 214 76.2 44.5 0.9 　
GM-NEWZ-77X32X2.7R 77X32X2.7R 1.573 212.85 551.8 77 32 2.7 　
GM-78.6X35.4X2R 78.6X35.4X2R 1.234 222.85 433.13 78.6 35.4 2 3
GM-SDMC-507 79.5x19.9x0.85 0.473 198 166.1 79.5 19.9 0.85 　
GM-LBY-4801 80X20X0.7 0.449 199.5 157.5 80 20 0.7 　
GM-SX-WM2992 80X40X0.9 0.573 240 201.11 80 40 0.9 　
GM-40X80X1.5 80X40X1.5 1.000 240 350.9 80 40 1.5 　
GM-40X80X1.8 80X40X1.8 1.194 240 419 80 40 1.8 　
GM-PF-26 80X40X2.0R 1.303 243.85 457.13 80 40 2 3
GM-80X50X2 80X50X2 1.436 259.5 504 80 50 2 　
GM-NEWZ-80X50X3 80X50X3 2.120 260 744 80 50 3 　
GM-NEWZ-80X50X3R 80X50X3R 2.098 254.85 736.28 80 50 3 3
GM-80X60X6.0 80X60X6.0 4.378 280 1536 80 60 6 　
GM-GH-08 90x25x4 2.440 229.5 856 90 25 4 　
GM-NEWZ-90X50X2.0 90X50X2.0 1.550 279.14 543.86 90 50 2 　
GM-QHMQ-04 90X60X3 2.384 300 836.5 90 60 3 　
WXC-3887 90X60X5 4.051 300 1421.46 90 60 5 内R5
GM-100X15X1.2 100X15X1.2 0.770 229.5 270.2 100 15 1.2 　
GM-NEWZ-59 100X19,7X1,4 0.933 238.5 327.2 100 19,7 1,4 　
GM-NEWZ-60(shape) 100X19,7X1,4 0.949 238.5 333.1 100 19,7 1,4 　
GM-YLK-04 100X20X0.8 0.540 240 189.44 100 20 0.8 　
GM-100X20X1.2 100X20X1.2 0.804 239.49 282.24 100 20 1.2 　


Langfang Guomei Aluminum Co., Ltd. 6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 2        6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 3
Aluminum Alloy Rectangle Square Tube Profiles
Product Code Sizes Weight (kg/m) Perimetre (mm) Area (mm²) W (mm) H (mm) T (mm) R (mm)
GM-100X25X1.5 100X25X1.5 1.043 250 366 100 25 1.5 　
GM-NEWZ-100X25X2.5 100X25X2.5 1.710 249.2 600 100 25 2.5 　
GM-100X30X1.5 100X30X1.5 1.086 260 381 100 30 1.5 　
GM-SX-WM4068 100X40X0.9 0.709 280 248.76 100 40 0.9 　
GM-100X44X1.0 100X44X1.0 0.809 288 284 100 44 1 　
GM-100X44X1.2 100X44X1.2 0.968 288 339.8 100 44 1.2 　
GM-100X44X1.4 100X44X1.4 1.127 288 395.4 100 44 1.4 　
GM-100X44X3.0 100X44X3.0 2.360 288 828 100 44 3 　
GM-LGY50 100X45X0.8 0.613 289.49 215.17 100 45 0.8 　
GM-100X45X4.0 100X45X4.0 3.124 290 1096 100 45 4 　
GM-100X50X2.5 100X50X2.5 2.066 300 725 100 50 2.5 　
GM-NEWZ-100X50X3 100X50X3 2.462 300 864 100 50 3 　
GM-NEWZ-100X50X3R 100X50X3R 2.440 294.85 856.28 100 50 3 　
GM-NEWZ-100X50X6.0 100X50X6.0 4.719 299.2 1655.9 100 50 6 　
GM-100X55 100X55X2.5R 2.135 307 749 100 55 2.5 1.5
GM-100X60 100X60X2.0 1.778 320 624 100 60 2 　
GM-100X80 100x80x1.8 1.810 360 635 100 80 1.8 　
GM-NEWZ-100X80X2.0 100X80X2.0 2.006 360 704 100 80 2 　
GM-VT-EF-1400 101.6X25.4X0.9 0.642 253.5 225.4 101.6 25.4 0.9 　
GM-VT-EF-400 101.6X44.5X1 0.659 291.6 231.12 101.6 44.5 0.9 　
GM-GH-07 120x25x4 3.124 290 1096 120 25 4 　
GM-120X60 120X60X2 2.006 360 704 120 60 2 　


Langfang Guomei Aluminum Co., Ltd. 6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 2        6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 3
Aluminum Alloy Rectangle Square Tube Profiles
Product Code Sizes Weight (kg/m) Perimetre (mm) Area (mm²) W (mm) H (mm) T (mm) R (mm)
GM-120X60 120X60X2.9 2.880 360 1010.4 120 60 2.9 　
120X60X5 120X60X5 4.845 360 1700 120 60 5 　
GM-GYXC-412 120X60X6 5.746 360 2016 120 60 6 　
GM-MBZY-04 120x66x3.9 3.962 369 1390 120 66 3.9 2
120X80X6 120X80X6 6.430 400 2256 120 80 6 　
GM-NEWZ-125X40X3.0 125X40X3.0 2.719 329.2 954 125 40 3 　
GM-150X50 150X50X2.5 2.779 400 975 150 50 2.5 　
GM-NEWZ-150X50X3 150X50X3 3.317 400 1164 150 50 3 　
GM-150X100X2.5 150X100X2.5 3.445 500 1208.92 150 100 2.5 　
GM-QHMQ-03 160X60X4 4.834 440 1696 160 60 4 　
160X60X5 160X60X5 5.985 440 2100 160 60 5 　
YJ-13018 160X150X6 9.600 602.83 3503.9 160 150 6 10
GM-NEWZ-180X80X3.0 180X80X3.0 4.340 520 1524.1 180 80 3 　
GM-200X30X2.8 200X30X2.8 3.519 460 1234.75 200 30 2.8 　
GM-NEWZ-200X50X3 200X50X3 4.172 500 1464 200 50 3 　
GM-NEWZ-200X100X3 200X100X3 5.027 600 1764 200 100 3 　
GM-NEWZ-250X50X3 250X50X3 5.027 600 1764 250 50 3 　



6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 166063 T5 T6 Alloy Powder Coated Aluminium Hollow Section 17

Tag:

Unequal Angle Standard Aluminium Extrusions

80MM Aluminum Trim Angle

Aluminium Extrusions T Shape profiles

Want to Know more details about this product
I am interested in 6063 T5 T6 Alloy Powder Coated Aluminium Hollow Section could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
