Modular Automation ISO 6061 T5 4040 T Slot Aluminium Extrusion
Product Details:
| Place of Origin: | Langfang,Hebei,China |
| Brand Name: | Goomay |
| Certification: | ISO9001:2015,ISO14001:2015,ISO45001:2008 |
| Model Number: | GM-TZ-33 |
Payment & Shipping Terms:
| Minimum Order Quantity: | MOQ 500KGS For Initial Order,the quantity could be negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Inside: packed with plastic film to protect each piece. Outside: Wrap to be bundles by waterproof craft paper or EPE film. Customized as customers request is available. |
| Delivery Time: | After drawings confirmed,4-7days moulds ready , after samples approved , 7-10days delivery for 200TONS |
| Payment Terms: | 30%deposit+70% against BL copy, D/P, L/C |
| Supply Ability: | 5000T MONTHLY |
|
Detail Information |
|||
| Product Name: | Industrial Assembling Line Aluminum Profile | Material: | T5,T6 |
|---|---|---|---|
| Surface Treatment: | Mill Finish, Powder Coating, Anodizing, Wooden Grain Coating, Polishing, Electrophoresis, PVDF, Sanding Blasting, Etc | Types: | 40X40 60X60 80X80 100X100 40X80 Difference Sizes Available Or Customized |
| Apllication: | Production Line , Machinery Etc | Package: | Protective Film+thermal Shrinkage Bag, Single Profile Covered By Non-woven Cloth+ Whole Craft Paper,customized Package |
| High Light: | iso 4040 t slot aluminium extrusion,t5 4040 t slot aluminium extrusion,modular automation aluminum extrusion 4040 |
||
Product Description

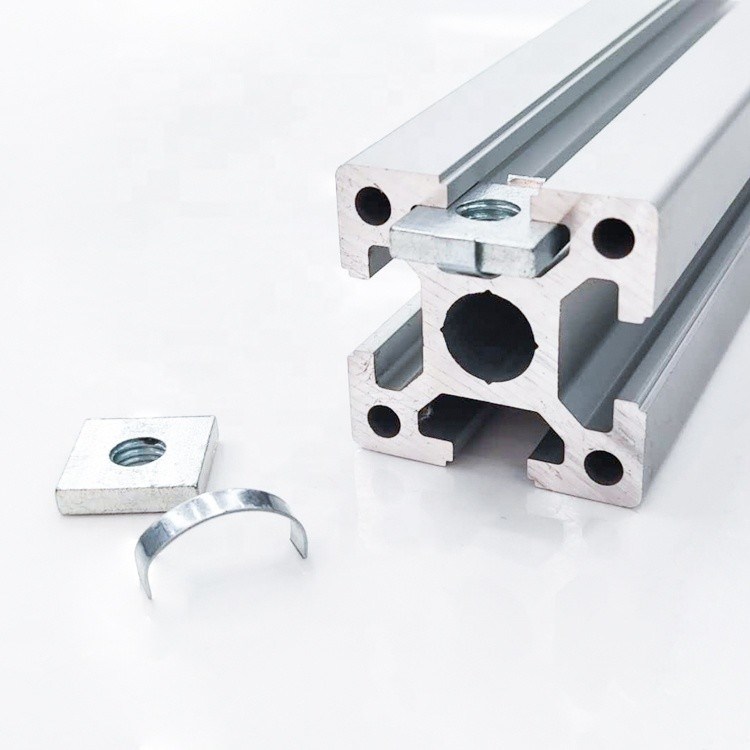

Modular Automation ISO 6061 T5 4040 T Slot Aluminium Extrusion
product description:
After the surface of the Production Line Extruded Aluminum T Slot is oxidized, it looks very beautiful and resistant to dirt. Once it is coated with oil, it is easy to clean. When assembled into a product, different specifications of profiles are used according to different load-bearing materials, and matching aluminum profile accessories are used. It needs welding, is more environmentally friendly, and is light and easy to carry, and it is extremely convenient to move.
Product Description
40X40 60X60 90X90 100X100 40X80 Industrial Assembling Line Aluminum Profile,, Production Line Aluminium profiles
| Place of Origin: | Hebei, China |
| Temper: | T3-T8 |
| Application: | Industrial frame system, transportation tool, production assembly line |
| Shape: | other, square, triangle, oval, circle, rectangle, plane, corner |
| Alloy or not: | No |
| Brand Name: | Goomay |
| Tolerance: | ±1% |
| Processing services: | bending, uncoiling, welding, punching, cutting |
| Product name: | aluminum profile |
| Deep processing: | CNC, drilling, milling, cutting, welding, bending |
| Aluminium Alloy Chemical Composition | ||||
| Alloy | 6063 (%) | 6063A (%) | 6061 (%) | 6082 (%) |
| Si | 0.2~0.60 | 0.3~0.60 | 0.4~0.80 | 0.7~1.30 |
| Fe | 0.35 | 0.15~0.35 | 0.7 | 0.5 |
| Cu | 0.1 | 0.1 | 0.15~0.40 | 0.1 |
| Mn | 0.1 | 0.15 | 0.15 | 0.40~1.0 |
| Mg | 0.45~0.90 | 0.60~0.90 | 0.80~1.20 | 0.6~1.20 |
| Cr | 0.1 | 0.05 | 0.04~0.35 | 0.25 |
| Zn | 0.1 | 0.15 | 0.25 | 0.2 |
| Ti | 0.1 | 0.1 | 0.15 | 0.1 |
| Other (each) | 0.05 | 0.05 | 0.05 | 0.5 |
| Other (total) | 0.15 | 0.15 | 0.15 | 0.15 |
| Al | Remainder | Remainder | Remainder | Remainder |
We are your best choice:
1. Application expertise
2. Custom R&D program coordination
3. Competitive prices
4. Continuous service and support
5. A diversity of experienced and skilled workers
6. Quality,reliability and long product life
Our advantage
1. Strong technical force: The company has more than 100 top talents. It USES advanced ERP management system and advanced physical and chemical testing equipment to ensure the quality, and has passed the ISO9001 international quality management system certification.
2. Professional services: our products are sold to The Beijing-Tianjin-Hebei region and other provinces of China, and to 58 countries and regions in Europe, Africa, the Middle East and Southeast Asia. Our professional marketing team can provide you with better services. Pre-sale, sale and after-sales service
3. Excellent geographical location: Located in the hinterland of Beijing, Tianjin and Xiongan New Area, with excellent geographical location and convenient transportation
4. More experienced: Founded in 1999, covering 100,000 square meters, and with a total asset of 680 million yuan, we are the largest aluminium extrusion, casting and deep processing enterprise in North China.
5. Sophisticated productin equipment: 15 most advanced extrusion presses from 500 to 5000 tons,2 powder coating lines, 5 wood transfer lines,2 anodizing lines,one fluorocarbon coating line and 10 aluminum casting machines.
6. Full product lines: Specialized in the production of industrial aluminum profile, architectural aluminum profile, Industrial assembly line aluminium profile, building templates aluminum profile, tent aluminum profile and radiator aluminum profile, with an annual capacity of 50,000 tons.
