Mill Finish Corrosion Resistance Building Aluminum Formwork Profiles
Product Details:
| Place of Origin: | Langfang,Hebei,China |
| Brand Name: | Goomay |
| Certification: | ISO9001:2015 , ISO14001:2015 , ISO45001:2008 |
| Model Number: | GM-JZMB-11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | MOQ 2000KGS For Initial Order,the quantity could be negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Inside:packed with protective film to protect each piece. Outside: Bulk Quantity , Thermal Shrinkage Bags , Whole Craft Paper |
| Delivery Time: | After drawings confirmed,4-7days moulds ready , after samples approved , 7-10days delivery for 200TONS |
| Payment Terms: | 30%deposit+70% against BL copy, D/P, L/C |
| Supply Ability: | 5000T MONTHLY |
|
Detail Information |
|||
| Product Name: | Aluminium Template Profiles , Building Formwork Profiles | Material: | China Alminium Origin Ingot 6005-T6 , 6061-T6 |
|---|---|---|---|
| Surface Treatment: | Mill Finish , Anodized Silver | Length:: | 6M - 13M Or Customized Length |
| Wall Thickness: | 2MM-15MM Or Customized Wall Thickness | Characters: | Light Weight,Easy-Installation,Recycled |
| Certificates: | ISO9001:2015 , ISO14001:2015 , ISO45001:2008 , Hebei Provincial Qualified Cerificate | Application: | Concrete Construction , Real Estate Construction |
| High Light: | Mill Finish Building Aluminum Formwork Profiles,Concrete Construction Aluminum Profiles,Corrosion Resistance Building Aluminum Formwork Profiles |
||
Product Description
Mill Finish Corrosion Resistance Building Aluminum Formwork Profiles
Aluminum Alloy building Formwork/Aluminum Template/Concrete Formwork
Description
We have adopted a more advanced system. The strength and rigidity of aluminum alloy formwork system are improved by optimizing the section of aluminum alloy formwork and surface powder coated treatment.
So, you will be able to purchase higher quality products at a lower price.
Product Parameters
| Product Name | Aluminium Template Profiles, Building Formwork Profiles | |
| Material | China Alminium Origin Ingot 6005-T6 , 6061-T6 | More toughness |
| Surface Treatment | Mill Finish , Anodized Silver | High corrosion resistance |
| Characters | Light Weight, Easy-Installation, Recycled | Save time and manpower |
| Certificates | ISO9001:2015 , ISO14001:2015 , ISO45001:2008 | National quality certification |
| Application | Concrete Construction , Real Estate Construction |

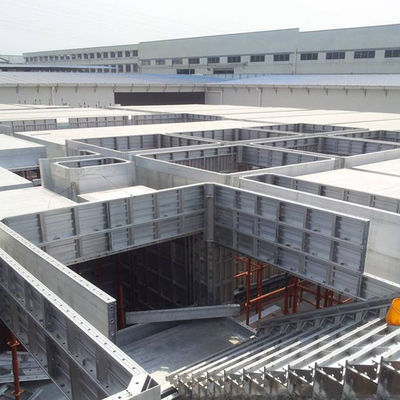

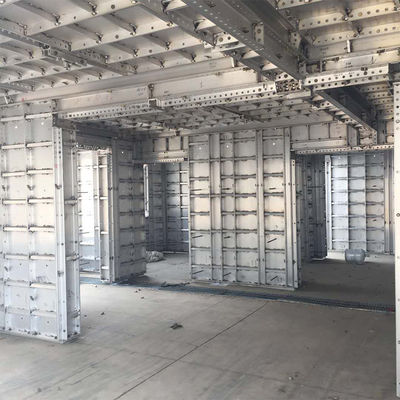

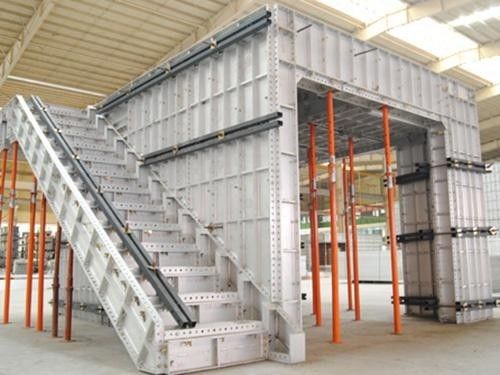

Aluminum alloy formwork system
Panel system:
It is made of extruded aluminum alloy profiles (6061-T6, etc.), which is light, high-strength, and good in integrity, so as to ensure convenient installation and repeated turnover of horizontal plates.
Supporting system:
Single support: adopt advanced early dismantling technology support system to ensure that the construction period of each layer structure is controlled within the range of 4 ~ 5 days. Through test verification, the vertical allowable bearing capacity reaches 20 ~ 25KPA.
Bidirectional bracing:
Realize the three-dimensional adjustment function, while ensuring the verticality and flatness of the vertical members (walls, columns), it can strengthen the horizontal rigidity and bearing capacity of the vertical members (walls, columns) to resist the lateral direction caused by pouring concrete pressure.
Fastening system:
Within the range of conventional storey height (2.8 ~ 3.2M), the back flute system adopts the design principles of locally strengthening 4 parts of inner wall, 5 parts of outer wall, openings and floating platforms, etc., so as to ensure the formwork system Overall strength, stiffness and stability.
Accessory system:
Pins, pins, bolts and other hardware accessories are all made of high-quality products, and the performance and processing accuracy meet the relevant specifications and customer requirements.
Construction advantages
1. Good system integrity
The overall casting is sub-molded, and the structure is safer.
2. High construction efficiency and short construction period
Only one set of template is needed for the early mold removal system.
3. Good construction quality
High quality of concrete molding: verticality, flatness, horizontality, and high precision of section size.
The concrete surface has a good look and feel: it achieves the effect of fair-faced concrete without plastering.
4. Reduce the use of vertical transport machinery
Except for the first formwork going upstairs and the last time going downstairs, lifting equipment is used, all subsequent manual transfers are used.
5. Solve the shortage of skilled workers on the construction site
The installation is simple, and the general workers can carry out the installation of aluminum formwork after simple training.
6. Safe and civilized construction
The support system is simple and convenient, with large on-site operation space, personnel movement, smooth material handling, clean and safe construction surface.
There is no construction waste, no need to store and clean up, and the construction site is easy to manage.
Economic benefit
The biggest cost advantage of the aluminum alloy template system is that it can be reused multiple times. At present, the standard template is used more than 300 times, and the damaged template can be recycled and re-casted.
Reduce wood consumption and protect forest resources.
Aluminum alloy templates can be reused many times. After damage, it can be returned to the furnace and remelted. All of these can be reused, which greatly reduces wood waste.
Save the use of river sand and protect water and soil resources.
Due to the high forming quality of aluminum alloy formwork, the effect of plastering can be avoided, and a large amount of labor cost can be saved in the production, transportation and plastering of cement, sand, water and mortar.
Care for life, pay attention to safety.
Realize safe and civilized low-carbon construction, reduce site safety accidents.
Increase efficiency and reduce energy consumption.
The use of aluminum alloy formwork has high construction efficiency and reduces the energy consumption in building construction.
At the same time, due to the high molding quality of the aluminum template, it can achieve the effect of plaster-free turbulence, saving a lot of cement, sand, water and mortar production, transportation and plastering labor costs, and its economic benefits as the number of repeated use increases The manifestation becomes more obvious.
