• Construction Building Aluminum Formwork Profiles
  • Construction Building Aluminum Formwork Profiles
  • Construction Building Aluminum Formwork Profiles
Construction Building Aluminum Formwork Profiles

Construction Building Aluminum Formwork Profiles

Product Details:

Place of Origin: Langfang,Hebei,China
Brand Name: Goomay
Certification: ISO9001:2015 , ISO14001:2015 , ISO45001:2008
Model Number: GM-JZMB-11

Payment & Shipping Terms:

Minimum Order Quantity: MOQ 2000KGS For Initial Order,the quantity could be negotiable
Price: Negotiable
Packaging Details: Inside:packed with protective film to protect each piece. Outside: Bulk Quantity , Thermal Shrinkage Bags , Whole Craft Paper
Delivery Time: After drawings confirmed,4-7days moulds ready , after samples approved , 7-10days delivery for 200TONS
Payment Terms: 30%deposit+70% against BL copy, D/P, L/C
Supply Ability: 5000T MONTHLY
Get Best Price Contact Now

Detail Information

Product Name: Aluminium Template Profiles , Building Formwork Profiles Material: China Alminium Origin Ingot 6005-T6 , 6061-T6
Surface Treatment: Powder Coated As Per RAL Colour Or Customized Colour Length:: 6M - 13M Or Customized Length
Wall Thickness: 2MM-15MM Or Customized Wall Thickness Characters: Light Weight,Easy-Installation,Recycled
Certificates: ISO9001:2015 , ISO14001:2015 , ISO45001:2008 , Hebei Provincial Qualified Cerificate Application: Concrete Construction , Real Estate Construction
High Light:

Construction Building Aluminum Formwork Profiles

,

6005-T6 Aluminium Template Profiles

Product Description

Construction Building Aluminum Formwork Profiles

6061-T6 Indonesia Aluminum Formwork H Beam Panel Profiles

China Professional Formwork Supplier Aluminum Formwork For Building Construction



Product Name

6061 T6 Indonesia aluminum formwork H beam panel profiles for the building concrete construction

Product range Customized Aluminum Profiles
Finish aluminum windows, aluminum doors
Aluminum Curtain wall profiles
Aluminum profiles for windows and door, for kitchen profiles
Industrial Aluminum profiles
General Aluminum Alloy 6060, 6061, 6063, 6005, 6082, 6063A, 6061F, 5050, 5052
Temper T3 - T8
Standard GB/T3190-2008 Chinese Standard
Accessories HOPO/SIEGENIA/Other Brand pointed by the customer with screen sheet
Application Doors, Windows, Balcony, Industry and So on
Surface treatment Powder coating: Normal Color, Special color
Fluorocarbon coating: Normal Color, Special Color
Anodizing: Silver, Champagne, Bronze, Black, K Gold, imitating Steel, Titanium
Titanium
Wooden Grain: General Color, Special Color.
Chemical Polishing, Wiredrawing. etc
Electrophoresis and wooden grain treatments
Deep Processing Ability Drilling, Bending, Welding, Aluminium Profiles fabrication, Precise cutting, etc
OEM service 1. Received the drawing or sample from the customer
2. Then discuss the details with the customer
3. Our die workshop will open the mould. Mould charge can be returned to you.
4. Test the mould and make the sample.
5. Send the sample to you for confirming
6. Receive the deposit - Mass production - Surface treatment
7. Quality test - Package - Received the balance - shipment
MOQ 1 ton for each type. If less than MOQ, please discuss it with us
Sample For free
Sample delivery time: 14 days after received the mould fee
Freight: It should be cover by the customer














Description



We have adopted a more advanced system. The strength and rigidity of aluminum alloy formwork system are improved by optimizing the section of aluminum alloy formwork and surface powder coated treatment.



So, you will be able to purchase higher quality products at a lower price.

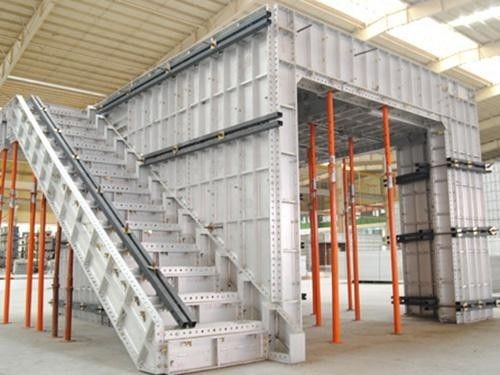

Aluminum alloy formwork system





Panel system:



It is made of extruded aluminum alloy profiles (6061-T6, etc.), which is light, high-strength, and good in integrity, so as to ensure convenient installation and repeated turnover of horizontal plates.





Supporting system:



Single support: adopt advanced early dismantling technology support system to ensure that the construction period of each layer structure is controlled within the range of 4 ~ 5 days. Through test verification, the vertical allowable bearing capacity reaches 20 ~ 25KPA.





Bidirectional bracing:



Realize the three-dimensional adjustment function, while ensuring the verticality and flatness of the vertical members (walls, columns), it can strengthen the horizontal rigidity and bearing capacity of the vertical members (walls, columns) to resist the lateral direction caused by pouring concrete pressure.





Fastening system:



Within the range of conventional storey height (2.8 ~ 3.2M), the back flute system adopts the design principles of locally strengthening 4 parts of inner wall, 5 parts of outer wall, openings and floating platforms, etc., so as to ensure the formwork system Overall strength, stiffness and stability.





Accessory system:



Pins, pins, bolts and other hardware accessories are all made of high-quality products, and the performance and processing accuracy meet the relevant specifications and customer requirements.









Construction advantages




1. Good system integrity


The overall casting is sub-molded, and the structure is safer.




2. High construction efficiency and short construction period


Only one set of template is needed for the early mold removal system.




3. Good construction quality


High quality of concrete molding: verticality, flatness, horizontality, and high precision of section size.
The concrete surface has a good look and feel: it achieves the effect of fair-faced concrete without plastering.





4. Reduce the use of vertical transport machinery


Except for the first formwork going upstairs and the last time going downstairs, lifting equipment is used, all subsequent manual transfers are used.




5. Solve the shortage of skilled workers on the construction site


The installation is simple, and the general workers can carry out the installation of aluminum formwork after simple training.




6. Safe and civilized construction


The support system is simple and convenient, with large on-site operation space, personnel movement, smooth material handling, clean and safe construction surface.
There is no construction waste, no need to store and clean up, and the construction site is easy to manage.







Economic benefit



The biggest cost advantage of the aluminum alloy template system is that it can be reused multiple times. At present, the standard template is used more than 300 times, and the damaged template can be recycled and re-casted.


At the same time, due to the high molding quality of the aluminum template, it can achieve the effect of plaster-free turbulence, saving a lot of cement, sand, water and mortar production, transportation and plastering labor costs, and its economic benefits as the number of repeated use increases The manifestation becomes more obvious.




Reduce wood consumption and protect forest resources.



The aluminum alloy formwork can be used repeatedly for many times. After being damaged, it can be returned to the furnace and remelted. All of them are reused, which greatly reduces the waste of wood.




Save the use of river sand and protect water and land resources.



Due to the high forming quality of the aluminum alloy template, the effect of avoiding plastering can be achieved, and a large amount of cement, sand, water and mortar production, transportation and plastering labor costs are saved.




Caring for life and paying attention to safety.



Achieve safe and civilized low-carbon construction and reduce site safety accidents.




Improve efficiency and reduce energy consumption.



The use of aluminum alloy formwork has high construction efficiency and reduces energy consumption in building construction.







Product Parameters



Product Name Aluminium Template Profiles, Building Formwork Profiles
Material China Alminium Origin Ingot 6005-T6 , 6061-T6 More toughness
Surface Treatment Mill Finish , Anodized Silver High corrosion resistance
Characters Light Weight, Easy-Installation, Recycled Save time and manpower
Certificates ISO9001:2015 , ISO14001:2015 , ISO45001:2008  National quality certification
Application Concrete Construction , Real Estate Construction
