4mm 25KG/SQM Heavy Duty Building Aluminum Formwork Profiles

4mm 25KG/SQM Heavy Duty Building Aluminum Formwork Profiles

Product Details:

Place of Origin: Hebei,China
Brand Name: Guomei Aluminium
Certification: ISO9001:2015 ISO
Model Number: GM-JZMB-009

Payment & Shipping Terms:

Minimum Order Quantity: 1000KGS or Discussed Initial Quantity
Price: USD2000-3000/TON
Packaging Details: Whole Craft Paper , Wrapping Plastic Bags, Shrinkage Plastic Bags etc
Delivery Time: 3-7 Days Moulding Time, 1-2Days Approval Time,5-10Days Production Time
Payment Terms: Western Union, L/C, T/T, D/P
Supply Ability: 50000TONS PER YEAR
Get Best Price Contact Now

Detail Information

Type: Aluminium Building Formwork Warranty: 5 Years
After-Sale Service: Online Technical Support, Onsite Installation, Onsite Training Project Solution Capacity: Ability: Graphic Design, 3D Model Design, Total Solution For Projects
Wall Thickness: 4mm Or Customized Material And Temper: 6061-T6
Reusable Times: 300Times Up Loading: 60kN/m2 With 2 Times Safety Factor
Weight: Average 25KG/SQM Feature: Easily Assembled
Advantage: Long Lifespan Costs: Recycled Costs-Saving
High Light:

heavy duty building aluminum formwork

,

25KG/SQM building aluminum formwork profiles

,

4mm building aluminum formwork profiles

Product Description

4mm 25KG/SQM Heavy Duty Building Aluminum Formwork Profiles



Cost Saving Heavy Duty Aluminium Concrete Molds Construction Formwork System For Building



Product Description

Adopting aluminum formwork can reduce the construction period and improve the efficiency.
Furthermore, it can effectively reduce TCO by using up to 300 times of recycling.
Guomei aluminum formwork system takes quality as life and has been widely used in tens of thousands of project.

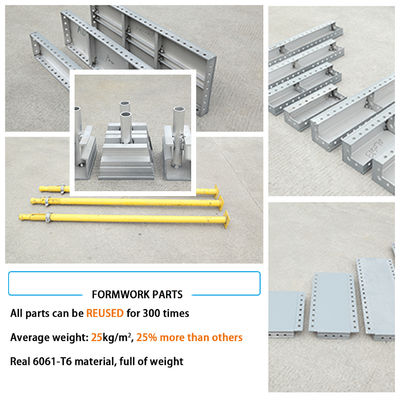

Formwork system

Guomei Aluminium  adopts 6061-T6 aluminum alloy profile with sufficient thickness to meet the requirements of loading and rigid strength required for building structure forming during concrete pouring.



Support system

The adjustable aluminium props is more suitable for different structural requirements and is convenient for rough adjustment and fine adjustment



Bracing system

To ensure that the width of the tructure formed by the formwork will not deform in the process of pouring concrete, and the formwork will not expand and burst.





Product Specification



Formwork System 1. Wall Modular
2. Pillar Modular
3. Beam Modular
4. Roof Modular
5. Stair Modular
6. Bay window Modular
7. Special-shaped
6061-T6
Aluminum Alloy
Width: 400 mm(Normal), 300 mm, 250 mm, 200 mm, 150 mm, 100 mm, 50 mm
Thickness: 4 mm
Height: Customized or Standard Template + Connection
Bracing System Adjustable support rod Q235 Steel inner tube: 1700 mm
outer tube 1500 mm
Supporting System Double-barreled square tube Q235 Steel 30 mm*50 mm tube
40 mm*60 mm tube
Accessories Pin, Shim, Bolt, Screw Q235 Steel





Technical Comparison

Analysis among Aluminum Formwork, Steel Formwork and Plastic Formwork



No.

Items

Aluminum Formwork

Steel Formwork

Plastic Formwork

1

Panel Material

4mm 6061-T6 Aluminum Alloy Slab

2.5~3mm Q235
Steel Plate

ABS/PC/PP

2

Formwork Thickness

65mm

55mm

75mm

3

Average Weight

25Kg/m2

40~80Kg/m2

15Kg/m2

4

Loading

60KN/m2

30KN/m2

<30KN/m2

5

Yield/Bending Strength

280MPa

235MPa

86Mpa

6

Usage Times

>300 times

50 times

30~50 times

7

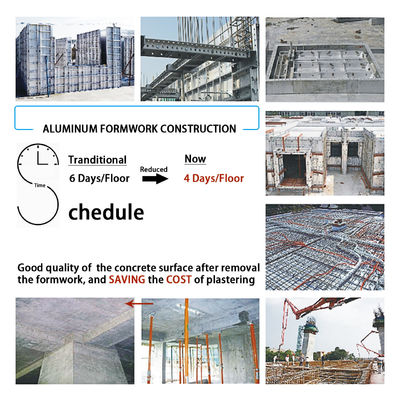

Construction Efficiency

4~5 Days/Floor

7~8 Days/Floor

4~5 Days/Floor

8

Labor Cost

Low

High

Low

9

Applicaton

All Buliding Structure

WallColumnBeamFloor

WallFloor

10

Concrete Surface

Smooth and Tidy
Non-plastering

Rude
Plastering Needed

Localized
Deformation

11

Machine Needed

NO

YES

NO

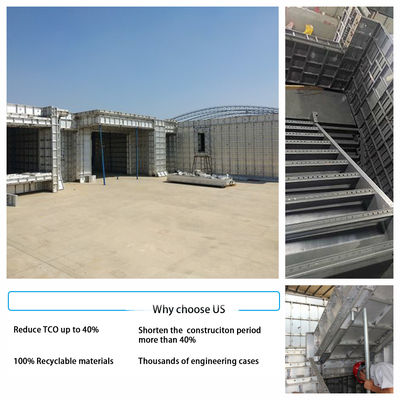

Feature and advantage



Reduce tco up to 40%
Shorten the construction period more than 40%
100% recyclable materials
Thousands of engineering cases





4mm 25KG/SQM Heavy Duty Building Aluminum Formwork Profiles 0



4mm 25KG/SQM Heavy Duty Building Aluminum Formwork Profiles 1





FAQ



Q1. Can be aluminum formwork customized?

Yes, we can provide the scheme deepening design which is the prerequisite and key of formwork optimum application..



Q2. What is your MOQ?

In general,10 square meters is the minimum requirement for application.



Q3. What are your advantages?

We are much more than just a supplier and manufacture, we have extensive hand-on experience and the technical knowledge needed to help our customers choose the products that will exceed their needs.



Q4. Do you provide installation?

We can provide professional instructions and online technical service. We can send our team on site if necessary.
