High Construction Efficiency H Beam Large Aluminium Template Profiles
Green , Low - Carbon , Energy - Saving And Environmentally - Friendly Aluminum Formwork Profiles , Aluminium Temp Profiles
We have adopted a more advanced system. The strength and stiffness of aluminum alloy formwork system can be improved by optimizing the cross section and surface powder spraying treatment of aluminum alloy formwork.
So, you will be able to purchase higher quality products at a lower price.
|Product Name||Aluminium Template Profiles, Building Formwork Profiles|| |
|Material||China Alminium Origin Ingot 6005-T6 , 6061-T6||More toughness|
|Surface Treatment||Mill Finish , Anodized Silver||High corrosion resistance|
|Characters||Light Weight, Easy-Installation, Recycled||Save time and manpower|
|Certificates||ISO9001:2015 , ISO14001:2015 , ISO45001:2008 ||National quality certification|
|Application||Concrete Construction , Real Estate Construction|| |

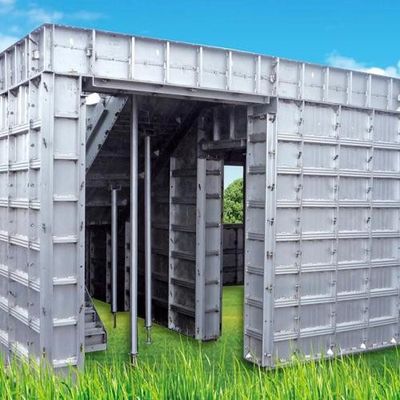

Aluminum alloy formwork system
Single support: adopt advanced early dismantling technology support system to ensure that the construction period of each layer structure is controlled within the range of 4 ~ 5 days. Through test verification, the vertical allowable bearing capacity reaches 20 ~ 25KPA.

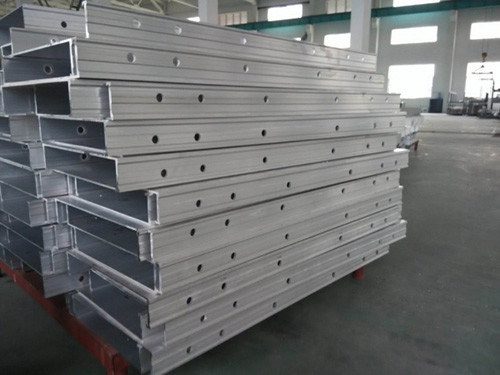

It is made of extruded aluminium alloy profiles (6061-T6, etc.), with light weight, high strength and good integrity, thus ensuring easy installation and repeated flipping of the horizontal plate.
Realize the three-dimensional adjustment function, while ensuring the verticality and flatness of the vertical members (walls, columns), it can strengthen the horizontal rigidity and bearing capacity of the vertical members (walls, columns) to resist the lateral direction caused by pouring concrete pressure.
Within the range of conventional storey height (2.8 ~ 3.2M), the back flute system adopts the design principles of locally strengthening 4 parts of inner wall, 5 parts of outer wall, openings and floating platforms, etc., so as to ensure the formwork system Overall strength, stiffness and stability.
Pins, pins, bolts and other hardware accessories are all made of high-quality products, and the performance and processing accuracy meet the relevant specifications and customer requirements.
1. Good system integrity
The whole casting is divided and the structure is safer.
2. High construction efficiency and short construction period
Only one set of template is needed for the early mold removal system.
3. Good construction quality
High quality of concrete molding: verticality, flatness, horizontality, and high precision of section size.
The concrete surface has a good look and feel: it achieves the effect of fair-faced concrete without plastering.
4. Reduce the use of vertical transport machinery
Except for the first formwork going upstairs and the last time going downstairs, lifting equipment is used, all subsequent manual transfers are used.
5. Solve the shortage of skilled workers on the construction site
The installation is simple, and the general workers can carry out the installation of aluminum formwork after simple training.
6. Safe and civilized construction
The support system is simple and convenient, with large on-site operation space, personnel movement, smooth material handling, clean and safe construction surface.
There is no construction waste, no need to store and clean up, and the construction site is easy to manage.
The biggest cost advantage of the aluminum alloy template system is that it can be reused multiple times. At present, the standard template is used more than 300 times, and the damaged template can be recycled and re-casted.
At the same time, due to the high molding quality of the aluminum template, it can achieve the effect of plaster-free turbulence, saving a lot of cement, sand, water and mortar production, transportation and plastering labor costs, and its economic benefits as the number of repeated use increases The manifestation becomes more obvious.
Reduce wood consumption and protect forest resources.
The aluminum alloy formwork can be used repeatedly for many times. After being damaged, it can be returned to the furnace and remelted. All of them are reused, which greatly reduces the waste of wood.
Caring for life and paying attention to safety.
Achieve safe and civilized low-carbon construction and reduce site safety accidents.
Improve efficiency and reduce energy consumption.
The use of aluminum alloy formwork has high construction efficiency and reduces energy consumption in building construction.
Save the use of river sand and protect water and soil resources.
Due to the high forming quality of aluminum alloy formwork, the effect of plastering can be avoided, and a large amount of labor cost can be saved in the production, transportation and plastering of cement, sand, water and mortar.
